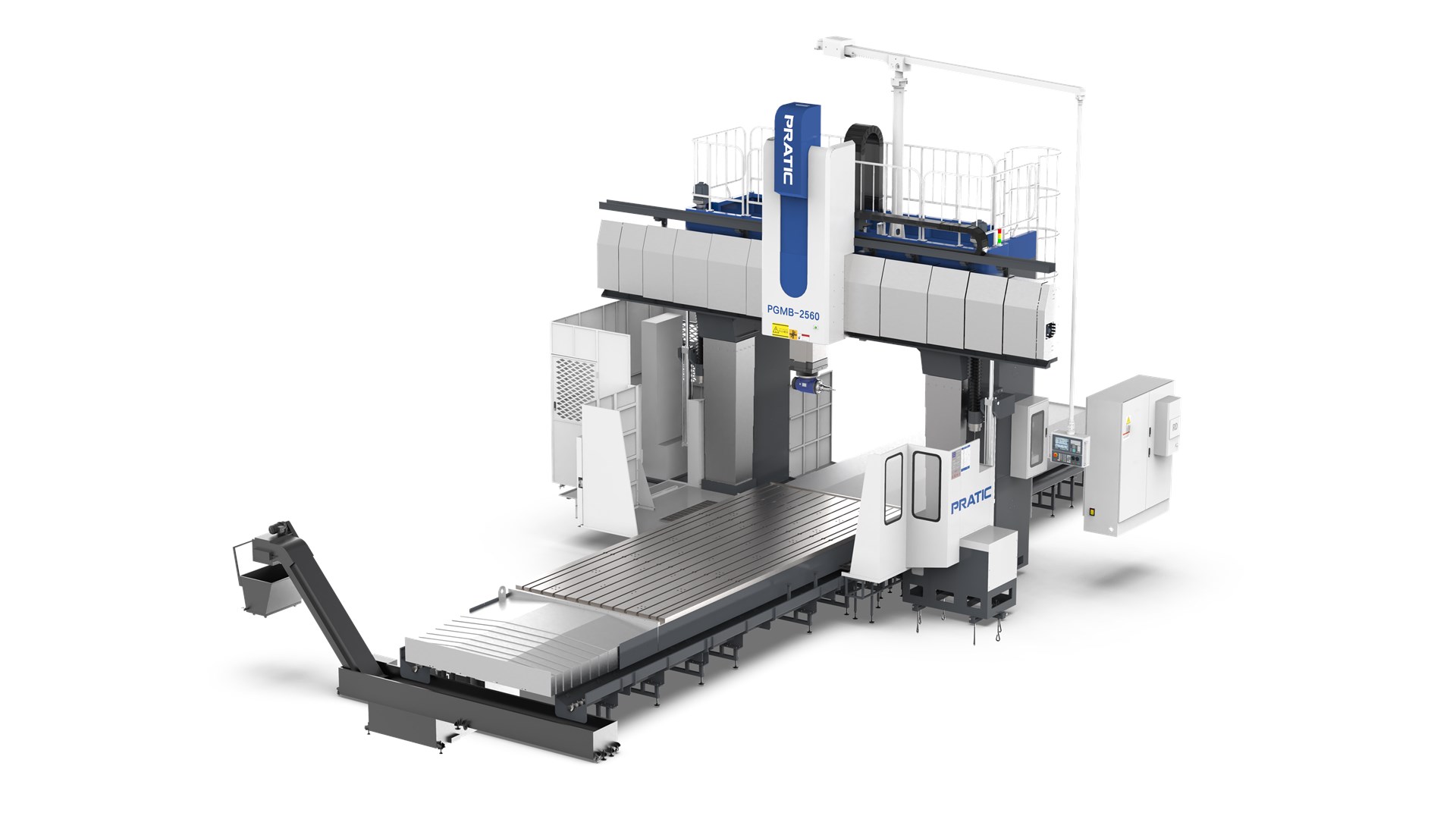

Pratic PGMB Bridge Machining Center

Homepage / Pratic PGMB Bridge Machining Center

X-Axis — 4200 / 6200 / 8500 mm

Y-Axis — 4500 mm

Z-Axis — 1200 mm

W-Axis — 1300 mm

Max Spindle Speed — 10~4500 rpm

Spindle Taper — BT50

	Items	Unit	PGMB3040	PGMB3060	PGMB3080
Travel	X-axis	mm	4200	6200	8500
	Y-axis	mm	4500
	Z-axis	mm	1200
	W-axis	mm	1300
	From spindle end to worktable	mm	0~2350
	Distance of two columns	mm	3700
Worktable	Size	mm	3000*4000	3000*6000	3000*8000
	Max. load	t	24	36	48
	Width/Distance/Number of T-slots	mm	28-200-13
Spindle unit	Type	/	Mechanical
	Power	kW	22/33（S1/S6-40%）
	Speed	rpm	10~4500
	Torque	Nm	1076/1614（S1/S6-40%）
	Taper	/	BT50
	Square ram	mm	400*400
Feedrates	Rapid on X/Y/Z/W	m/min	10/15/10/3
Feedrates	X/Y/Z/W Cutting Feed Rate	m/min	6/6/6
Dimension	Machine Height	mm	8000
	Machine Width	mm	9000	8500	8500
	Machine Length	mm	12000	16000	20000
	Machine Weight	t	80	90	100
