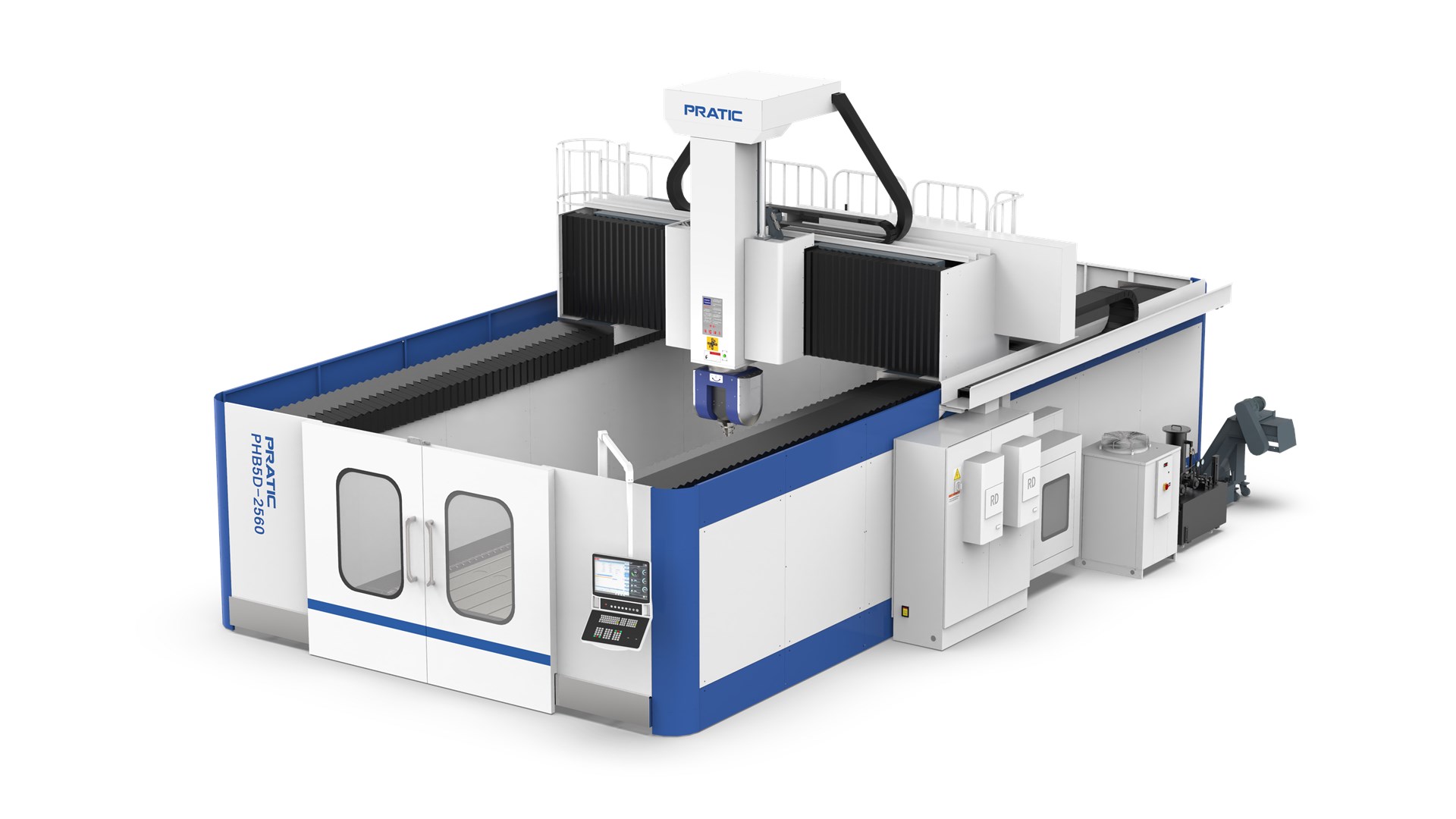

Pratic PHB5D Gantry Machining Center

Homepage / Pratic PHB5D Gantry Machining Center

Pratic PHB5D Gantry Machining Center

Pratic PHB5D Gantry Machining Center

X-Axis — 4000/6500/8000 mm

Y-Axis — 2600 / 3100 mm

Z-Axis — 1250(1000/1500) mm

A-Axis — ±105°

C-Axis — ±360°

Max Spindle Speed — 6000/18000 rpm

Spindle Taper — HSK A63

	Items	Unit	PHB5D-2540/60/80	PHB5D-3040/60/80
Travel	X-axis	mm	4000/6500/8000
	Y-axis	mm	2600	3100
	Z-axis	mm	1250(1000/1500)
	A-axis	/	±105°
	C-axis	/	±360°
	Spindle nose to table	mm	0-1250
	Distance between columns	mm	3400	3900
Worktable	Size	mm	2500*4000/6000/8000	3000*4000/6000/8000
	Max. load	T/㎡	5
	Number/Distance of T-slots	/	22; 250
Spindle unit	Type	/	Motorized
	Rated power	kW	56/70 (S1/S6)
	Max. speed	rpm	6000/18000
	Rated torque	Nm	89/111 (S1/S6)
	Taper	/	HSK A63
	Square ram	mm	500*500
Feedrates	Rapid on X/Y/Z	m/min	30/30/30
Feedrates	X/Y/Z Cutting Feed Rate	m/min	15/15/15
Dimension	Machine Height	mm	5550
	Machine Width	mm	7500	8000
	Machine Length	mm	8000/10200/12200
