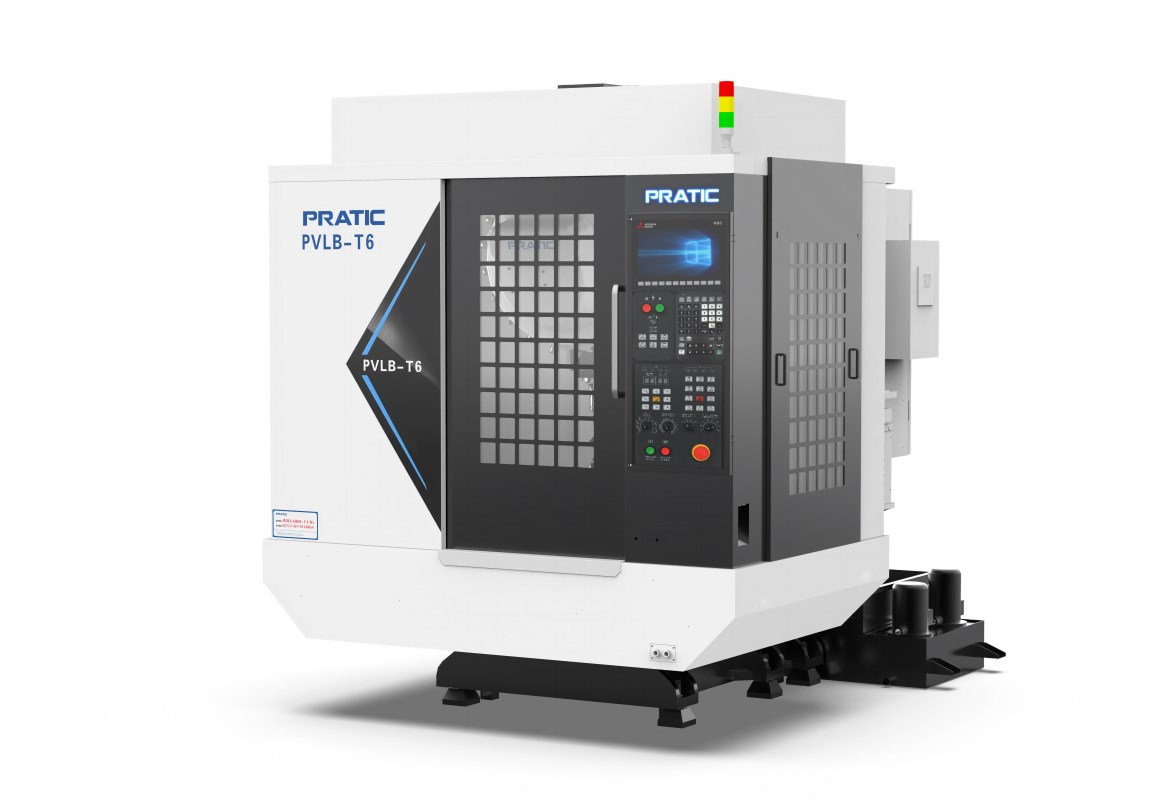

Pratic PVLB-T Vertical Machining Center

Homepage / Pratic PVLB-T Vertical Machining Center

X-Axis — 600 / 700 / 800 mm

Y-Axis — 400 / 400 / 500 mm

Z-Axis — 350 / 350 / 420 mm

Max Spindle Speed — 20000 rpm

Spindle Taper — BT30 / BT30/ BT30

	project	unit	PVLB-T6	PVLB-T7	PVLB-T8
travel	X-axis	mm	600	700	800
	Y axis	mm	400	400	500
	Z axis	mm	350	350	420
	The distance from the rotating nose to the work surface	mm	145-495	145-495	145-495
worksheet	Dimensions (length*width)	mm	700×420	420×800	500×1000
	Highest.load	kg/m²	300	300	350
	T-slot (quantity/width/center distance)	mm	3-14T125	3-14T125	3-14T125
¶	type	/	Mechanical	Mechanical	Mechanical
	Power supply (S1/S6)	kilowatt	5.5	5.5	5.5
	Magnesium alloy (S1/S6)	nanometer	14.1/17.5	14.1/17.5	14.1/17.5
	fastest.	import	20000	20000	20000
	Taper	/	BT30	BT30	BT30
Feed rate	Fast on X/Y/Z	m/min	48/48/48	48/48/48	48/48/48
Feed rate	X/Y/Z cutting feed rate	m/min	1~12000
Tool magazine	type	/	Swash plate type
	rich	pieces.	twenty one
	tool time	Second	1.8
aspect	Machine height	mm	2650	2300	2700
	Coverage area	mm	2300*1700	2000*1900	2500*2600
	Machine weight	Kilogram	3000	3300	3500
