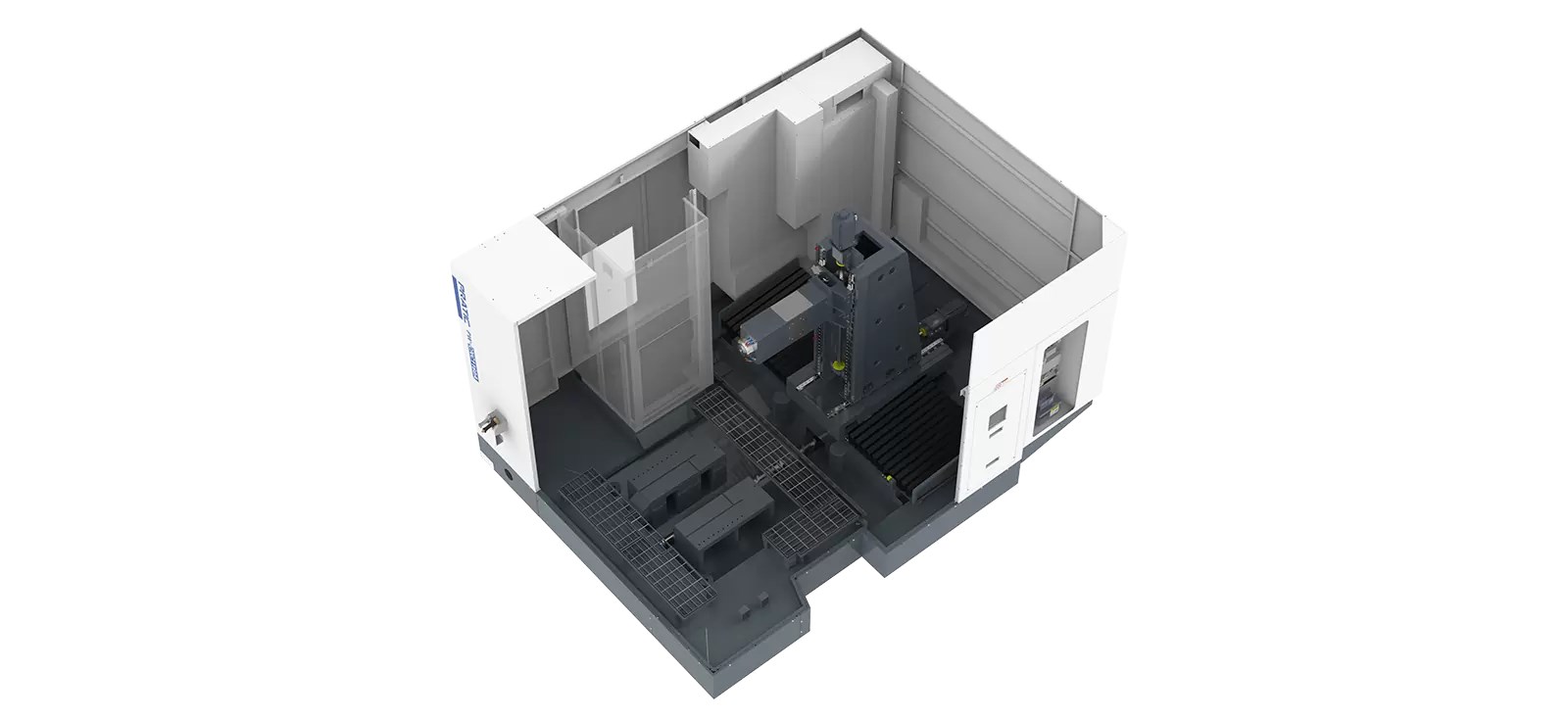

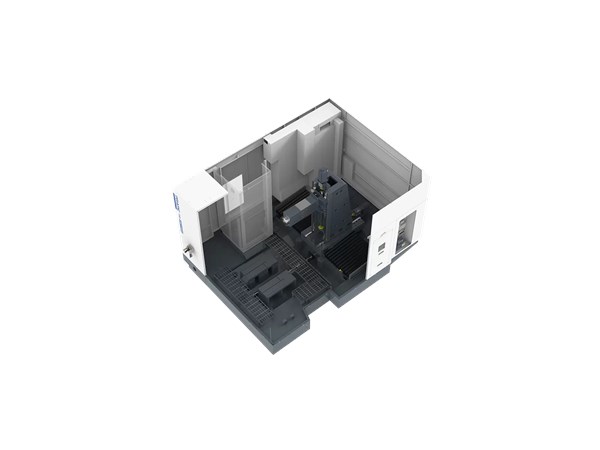

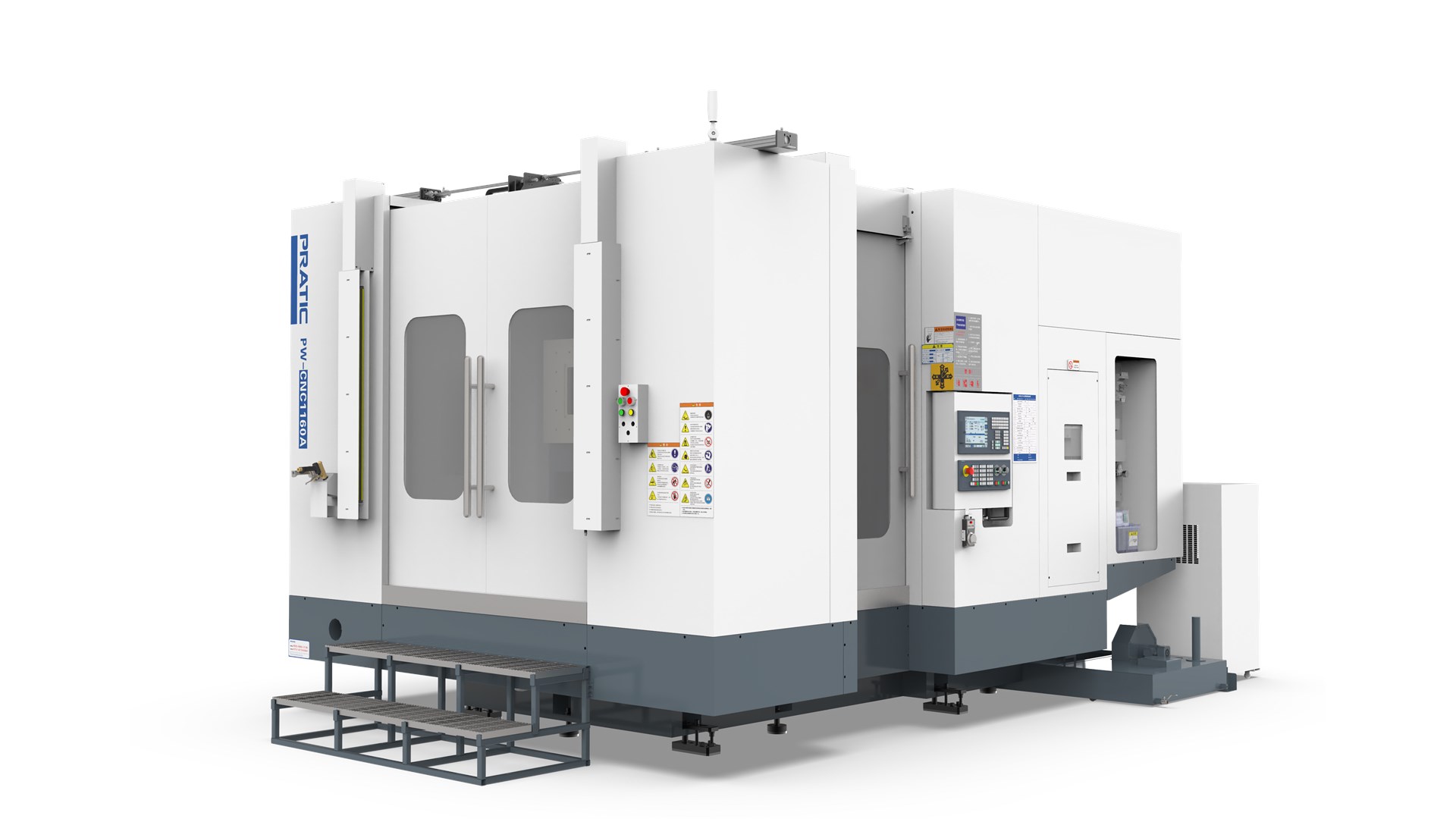

Pratic PW Horizontal Machining Center

Homepage / Pratic PW Horizontal Machining Center

X-Axis — 900 / 1200 / 1300 mm

Y-Axis — 800 / 1100 / 1300 mm

Z-Axis — 500 / 600 / 600 mm

Max Spindle Speed — 20000 rpm

Spindle Taper — BBT40

	Items	Unit	PW-CNC8050A	PW-CNC1160A	PW-CNC1360A
Travel	X-axis	mm	900	1200	1300
	Y-axis	mm	800	1100	1300
	Z-axis	mm	500	600	600
	From spindle center to rotary table surface	mm	50-800	50-1100	45-1100
	From spindle end to rotary table center	mm	200-600	180-600	255-600
Spindle	Type	/	Motorized
	Power(S1/S6)	kW	20/24(S1/S6)
	Torque(S1/S6)	N.m.	35/42
	Max. speed	rpm	20000
	Taper	/	BBT40
Feedrates	Rapid on X/Y/Z	m/min	48/48/48	48/48/48	48/48/48
Feedrates	X/Y/Z Cutting Feed Rate	m/min	15
Tool Magazine	Type	/	Disc type
	Capacity	pcs.	32
	Tool-to-tool time	sec	3	3	3
Dimension	Machine Height	mm	2750	3100	3350
	Covering Area	mm	3000*4200	3400*4250	3400*4250
	Machine Weight	t	10.5	11.5	12
