Pratic PWA Horizontal Machining Center

Homepage / Pratic PWA Horizontal Machining Center

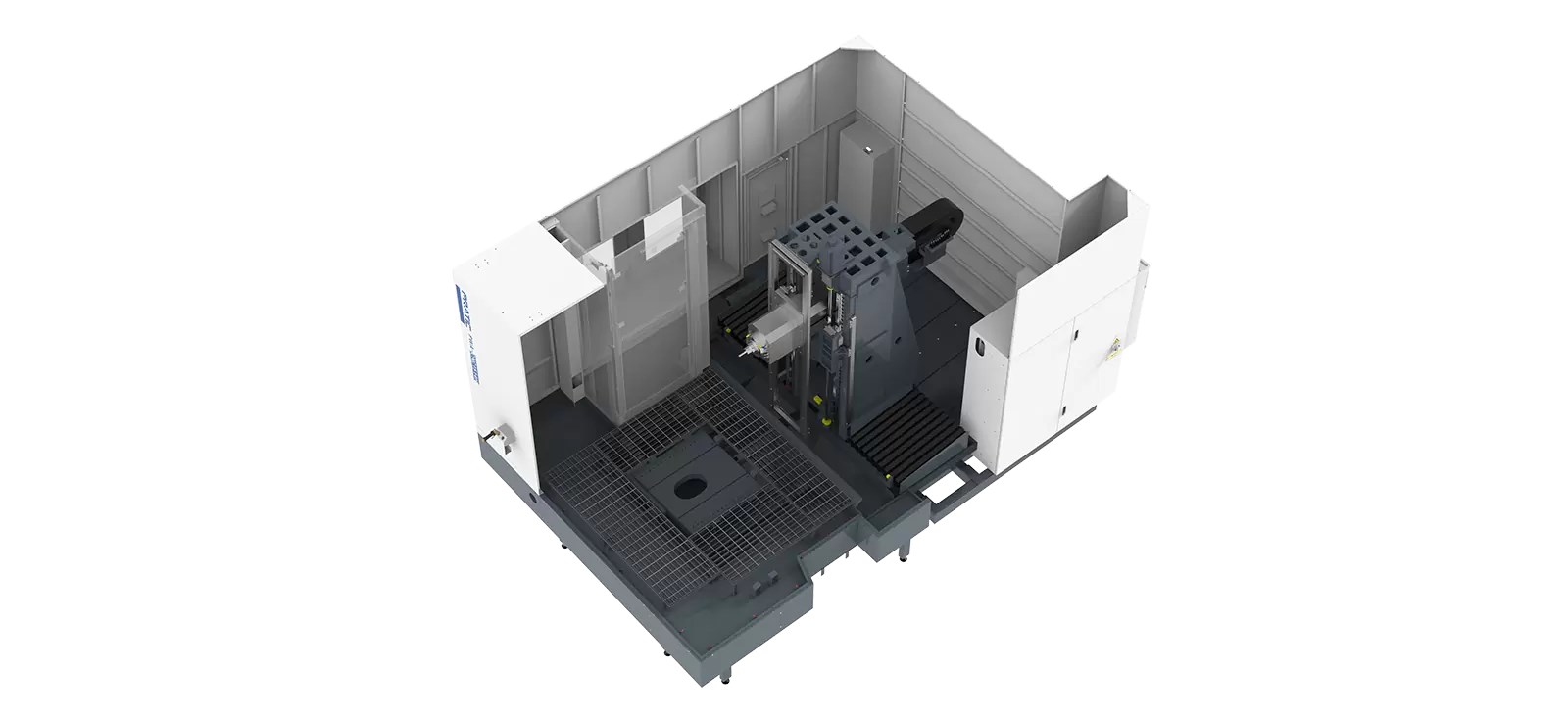

Pratic PWA Horizontal Machining Center

Pratic PWA Horizontal Machining Center

Pratic PWA Horizontal Machining Center

X-Axis — 900 / 1200 / 1500 mm

Y-Axis — 800 / 1100 / 1400 mm

Z-Axis — 500 / 600 / 600 mm

Max Spindle Speed — 10000 rpm

Spindle Taper — BT40 / BT40 / BT50/A100

	Items	Unit	PWA-CNC8050	PWA-CNC1160	PWA-CNC1514
Travel	X-axis	mm	900	1200	1500
	Y-axis	mm	800	1100	1400
	Z-axis	mm	500	600	600
Spindle	Type	/	Mechanical
	Power (S1/S6)	kW	11/18.5	11/18.5	14/27
	Torque (S1/S6)	N.m.	57/135	57/135	89/180
	Max. speed	rpm	10000
	Taper	/	BT40	BT40	BT50/A100
Feedrates	Rapid on X/Y/Z	m/min	40/30/48	40/30/48	30/30/48
Feedrates	X/Y/Z Cutting Feed Rate	m/min	15
Tool Magazine	Type	/	Disc type
	Capacity	pcs.	32/32/30
	Tool-to-tool time	sec	3/3/5
Dimension	Machine Height	mm	3200	2850	3600
	Covering Area	mm	3500*6350	3100*6050	5450*7000
	Machine Weight	t	12.5	14	22
