| TRAVELS |

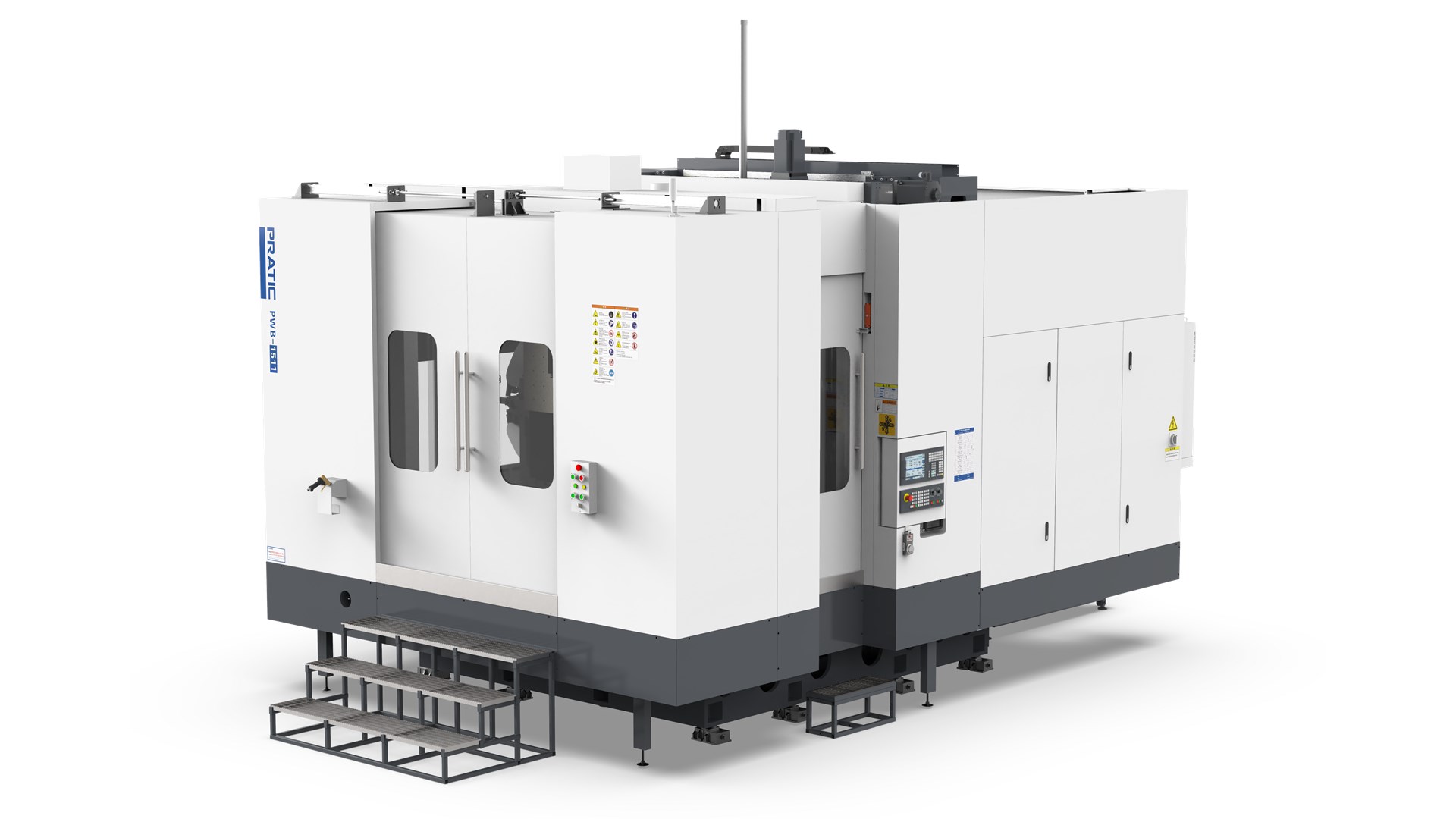

PWB1511 |
| X-Axis |
1615 mm |
| Y-Axis |
1030 mm |
| Z-Axis |
650 mm |
| A-Axis |
±120° |
| C-Axis |
0~360° |
| Spindle speed |
10000 rpm |
| Spindle taper |
BT50 |
| TOOL MAGAZINE |
| Type |
Disc type |
| Max.pockets of tool magazine |
30 pcs |
| Max.tool diameter(full adjacent pockets) |
φ125mm |
| Tool change time (tool to tool) |
4 sec |
| AXIS FEED RATES |
| Rapid on X |
60 m/min |
| Rapid on Y/Z |
60/60 m/min |
| X/Y/Z Cutting feed rate |
15000 mm/min |
| MOTOR POWER |
| Spindle power |
54/65kW |
| LUBRICATION AND COOLING SYSTEM |
| Lubrication system |
Automatic |
| Coolant system |
Water cooling |
| ACCURACY |
| X-Axis Positioning accuracy |
0.015 mm |
| Y/Z-Axis Positioning accuracy |
0.012 mm |
| X/Y/Z-Axis Repeatability accuracy |
0.01 mm |
| MECHANICAL SPECIFICATION |
| Machine height |
4200 mm |
| Machine width |
4490 mm |
| Machine length |
7850 mm |
| Machine weight |
28 t |
