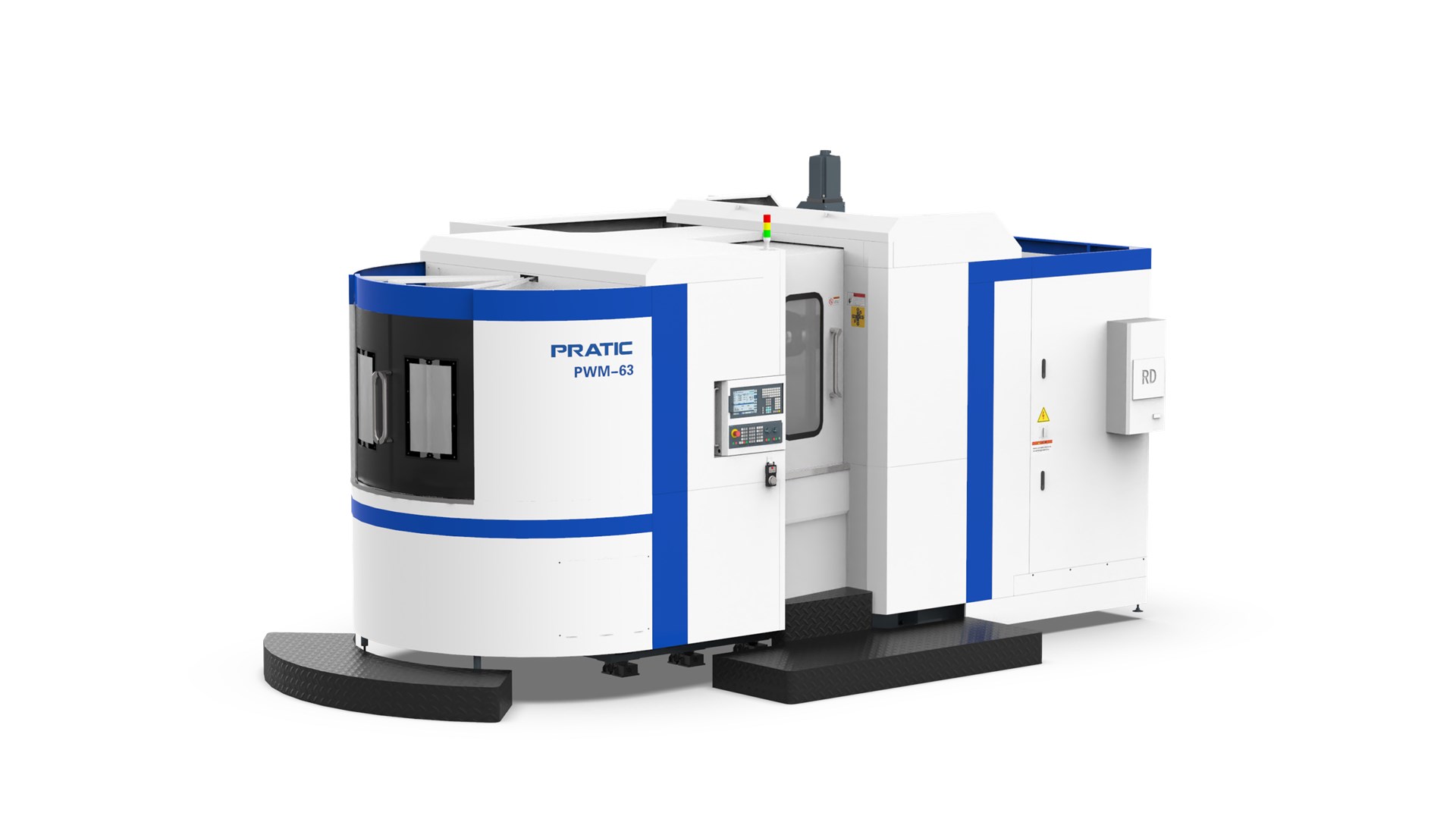

Pratic PWM Horizontal Machining Center

Pratic PWM Horizontal Machining Center

X-Axis — 1000 / 1300 mm

Y-Axis — 900 / 1100 mm

Z-Axis — 1000 / 1200 mm

Max Spindle Speed — 6000 rpm

Spindle Taper — BT50

	Items	Unit	PWM-63II	PWM-80II
Travel	X-axis	mm	1000	1300
	Y-axis	mm	900	1100
	Z-axis	mm	1000	1200
Spindle	Type	/	Mechanical
	Power (S1/S6)	kW	17/20.4
	Torque (S1/S6)	N.m.	870/1044
	Max. speed	rpm	6000
	Taper	/	BT50
Feedrates	Rapid on X/Y/Z	m/min	24
Feedrates	X/Y/Z Cutting Feed Rate	m/min	15
Tool Magazine	Type	/	Chain type
	Capacity	pcs.	40
	Tool-to-tool time	sec	5.5
Dimension	Machine Height	mm	3450	4000
	Covering Area	mm	7500*3950	7800*4800
	Machine Weight	t	19	25
