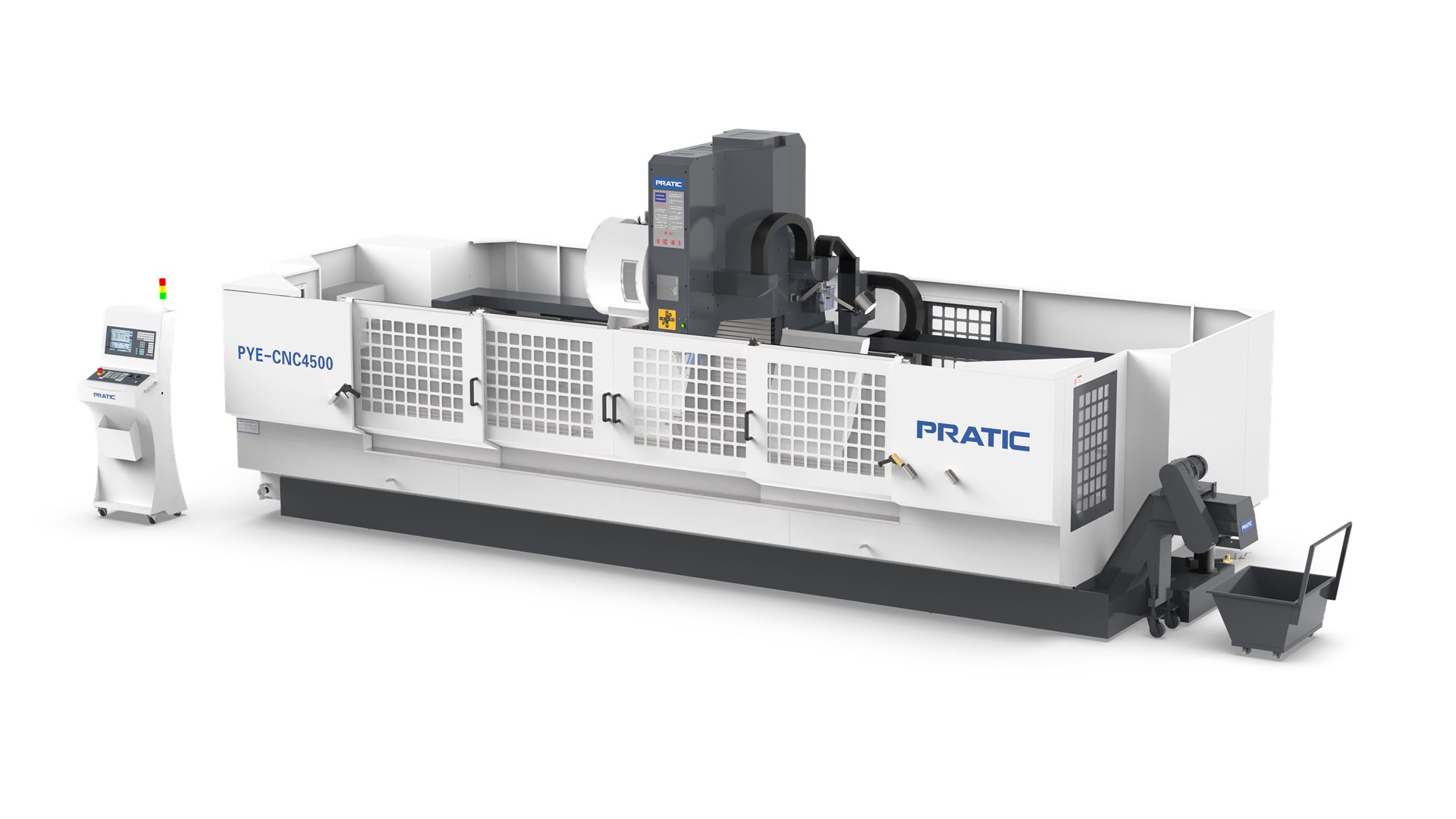

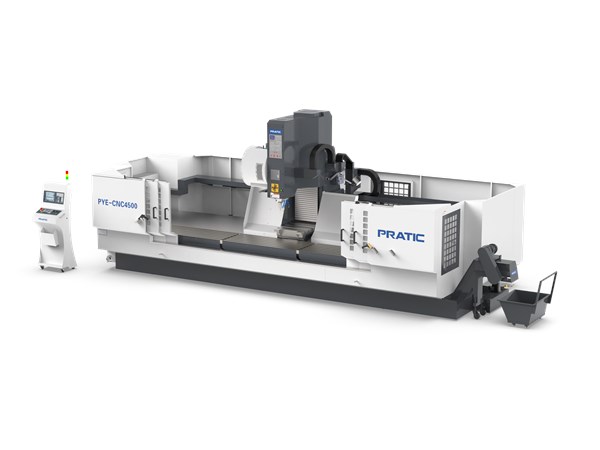

Pratic PYE 3 Axis Long Travel Moving Column Machining Center

Homepage / Pratic PYE 3 Axis Long Travel Moving Column Machining Center

X-Axis — 2500 / 4500 / 6500 mm

Y-Axis — 650 / 650 / 650 mm

Z-Axis — 700 / 700 / 700 mm

Max Spindle Speed — 8000 rpm

Spindle Taper — BT/SK/CAT50

BT50/SK50/CAT50 Spindle
	Items	Unit	PYE-CNC2500B	PYE-CNC4500B	PYE-CNC6500B
Travel	X-axis	mm	2500	4500	6500
	Y-axis	mm	650	650	650
	Z-axis	mm	700	700	700
	Distance from spindle nose to table surface	mm	130-830	130-830	130-830
Worktable	Size (Length*Width)	mm	2500×650	4510×650	6520×650
	Max. load	kg/m²	1200	1400	1600
	T-slot (Number/Width/Center distance)	mm	6/18/100
Spindle	Type	/	Mechanical
	Rated power	kW	15/17
	Max. speed	rpm	8000
	Taper	/	BT/SK/CAT50
Feedrates	Rapid on X/Y/Z	m/min	60/48/40
Feedrates	X/Y/Z Cutting Feed Rate	m/min	15
Tool Magazine	Type	/	Disc type
	Capacity	pcs.	24
	Tool-to-tool time	sec	2
Dimension	Machine Height	mm	3100
	Covering Area	mm	6900*3100	8700*3200	10900*3200
	Machine Weight	kg	12000	16500	17000
BT40/SK40/CAT40 Spindle
	Items	Unit	PYE-CNC2500	PYE-CNC4500	PYE-CNC6500
Travel	X-axis	mm	2500	4500	6500
	Y-axis	mm	650	650	650
	Z-axis	mm	700	700	700
	Distance from spindle nose to table surface	mm	130-830	130-830	130-830
Worktable	Size (Length*Width)	mm	2500×650	4510×650	6520×650
	Max. load	kg/m²	1200	1400	1600
	T-slot (Number/Width/Center distance)	mm	6/18/100
Spindle	Type	/	Mechanical
	Rated power	kW	11/13
	Max. speed	rpm	10000
	Taper	/	BT/SK/CAT40
Feedrates	Rapid on X/Y/Z	m/min	60/48/48
Feedrates	X/Y/Z Cutting Feed Rate	m/min	15
Tool Magazine	Type	/	Disc type
	Capacity	pcs.	24
	Tool-to-tool time	sec	2
Dimension	Machine Height	mm	3100
	Covering Area	mm	6900*3100	8700*3200	10900*3200
	Machine Weight	kg	12000	16500	17000
